Installing the sealing ring

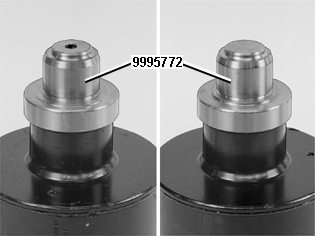

Fig 1: Special Tool 999 5772
GLL126245Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the sealing ring lip. Use wheel bearing grease, P/N 116 1241-3

NOTE: The drift has 2 sides.

The end of the locating pin without holes is for the 42 mm diameter early version sealing ring as shown.

Use special tool 9995772 .
