Remove the drive shaft seal

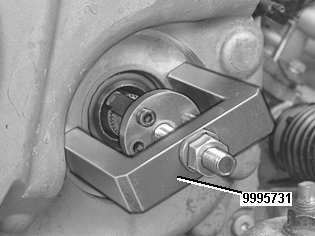

Fig 1: Removing Drive Shaft Seal Using Puller 999 5731
GLL109270Courtesy of VOLVO CARS OF NORTH AMERICA.

Use puller 9995731 .

Unscrew the puller. Install a hook gradually between the shaft and sealing ring.

Secure the hooks to the puller. Tighten them using the screws.

Install the mounting bracket and the nut.

Extract the sealing ring.
