Install the drive shaft seal

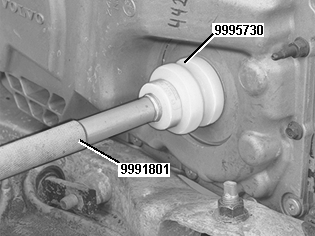

Fig 1: Installing Drive Shaft Seal Using Drift 999 5730 And Shaft 999 1801

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Clean thoroughly before installing the new seal

Apply a small amount of grease to the sealing lip.

Use drift 9995730 and shaft 9991801 .

Carefully tap the drive shaft seal in until the drift is in contact with the transmission housing.
