Replacing the pilot bearing

Press out the pilot bearing from the drive shaft

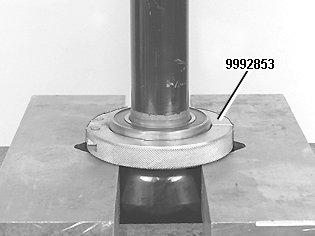

Fig 1: Supporting Socket And Shaft Using Jointed Ring 999 2853

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use jointed ring 9992853 . Support the socket and shaft as shown.

Install the new bearing on the shaft

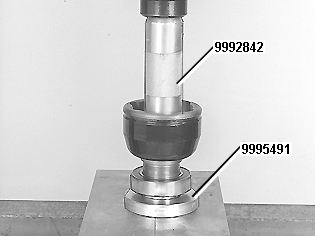

Fig 2: Using Press Ring 999 5491 As Support Against Bearing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use press ring 9995491 as support against the bearing. Turn it as shown.

Position socket 9992842 at the base of the universal joint.

Press the bearing against its seating on the shaft.
