Installing the Active on Demand Coupling

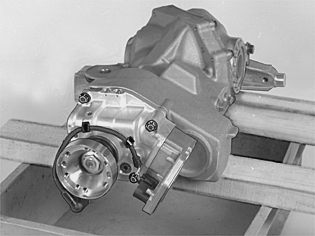

Fig 1: Active On Demand Coupling
GLL109931Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the AOC (Active on Demand Coupling) on the new final drive.

Ensure that the gasket does not jump out of position.

Install the 4 M8 screws for the Active on Demand Coupling. Tighten.

Tighten the screws alternately and crosswise to light contact.
