Removing the pinion seal

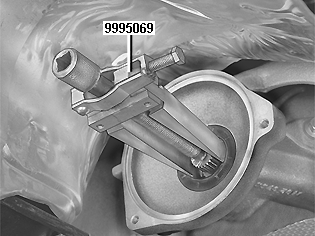

Fig 1: Identifying Pinion Seal
GLL109829Courtesy of VOLVO CARS OF NORTH AMERICA.

Use puller 9995069 to remove the seal.

Check for seal residue.
