Installing the screw for the final drive housing

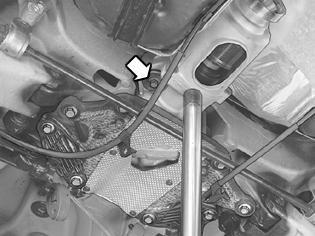

Fig 1: Identifying Final Drive Housing Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the mobile jack under the front of the final drive housing. Bring it into light contact.

Install the screw for the final drive housing and member. Tighten to 80 Nm  .
