Installing the anti-roll bar

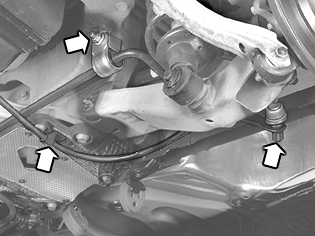

Fig 1: Identifying Anti-Roll Bar

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the anti-roll bar on the rear axle member. Tighten to 80 Nm  .

Tighten the control arms to the anti-roll bar. Tighten to 50 Nm  .

Install the parking brake cable mountings onto the cover. Tighten to 10 Nm  .
