Installing the final drive

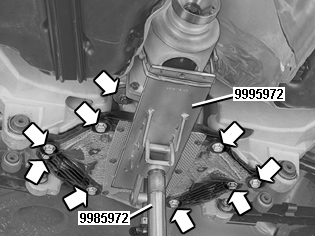

Fig 1: Position Mobile Jack 998 5972 Together With Fixture 999 5972

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the final drive up against the rear axle member. Align all screws.

Tighten the screws alternately. See Summary of tightening torques for specific components .

Remove the jack.
