Filling and checking the oil in the final drive

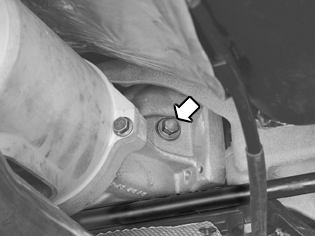

Fig 1: Locating Final Drive Fill Plug
GLL109872Courtesy of VOLVO CARS OF NORTH AMERICA.

Fill the final drive with oil. P/N 116 1620-8 (1 liter container)

Volume approximately 0.7 liters.
