Removing the front bushing from the final drive housing
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove the washer that is pressed onto the top of the bushing. Use a screwdriver.
Use hydraulic tool
9995576
with puller cylinder
9995575
or
9512564
.

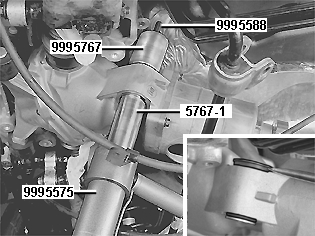

Install:
- threaded rod
9995588
for the puller cylinder
- drift 5767-1 for the puller cylinder (turned with the cut-outs towards the support lugs in the final drive housing)
- counterhold
9995767
on top. Press out the bushing.
