Removing the screw for holding the flange to the viscous coupling

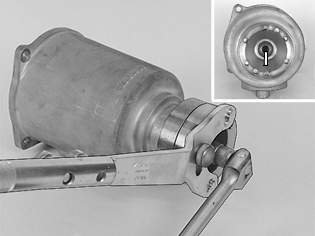

Fig 1: Identifying Counterhold & Position Mark

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use counterhold 9995652 with adapter 9995759 .

Mark up the position of the coupling and flange. Use a marker pen.

Press and tap out the viscous coupling from the flange. Take care not to damage the viscous coupling by letting it fall.
