Knock of the joint's inner track

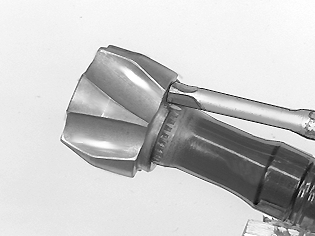

Fig 1: Positioning Drift Between Snap Ring Wings
GLL109796Courtesy of VOLVO CARS OF NORTH AMERICA.

Secure the shaft in a vice.

Position a drift between snap ring wings. Knock of the joint inner cone. Modify the drift according to Modifying the drift .
