Signal outside its permitted range: Verification

HINT: After carrying out the repair, check that the fault has been remedied.

Fig 1: Identifying Ignition ON

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Connecting Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition off
• Reinstall the components, reconnect the connectors etc.
• Ignition on
• Read off the signal from the pedal position sensor.

  Depress the brake pedal. Check that the pedal signal is updated.

  Fig 3: Identifying VCT2000

  Courtesy of VOLVO CARS OF NORTH AMERICA.

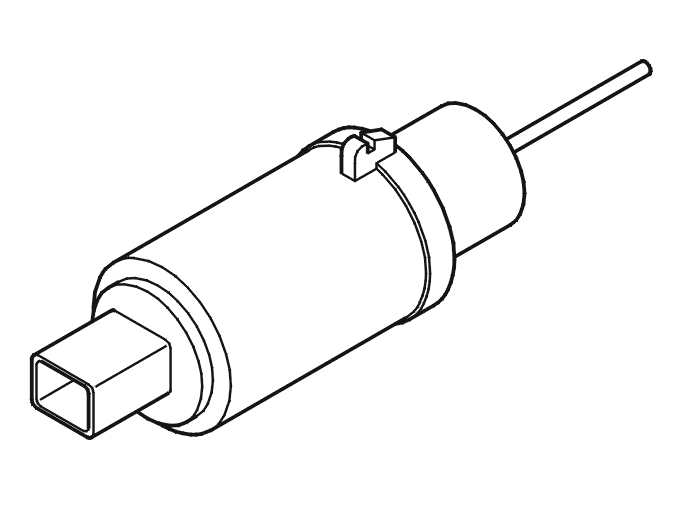

  Fig 4: Identifying Pedal Position Sensor

  Courtesy of VOLVO CARS OF NORTH AMERICA.

Was the signal updated?

• YES

  OKAY:  Troubleshooting has been completed.

• NO

  Refer to Information
