Signal faulty. Permanent fault: Verification

HINT: After the repair it is necessary to check that the fault has been rectified.

Fig 1: Identifying Ignition ON

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition off.
• Connect the connectors, install the components, etc.
• Ignition on.
• Use the "Activation" function to activate the pre-pressure valve.

  Its status should change between OFF/ON.

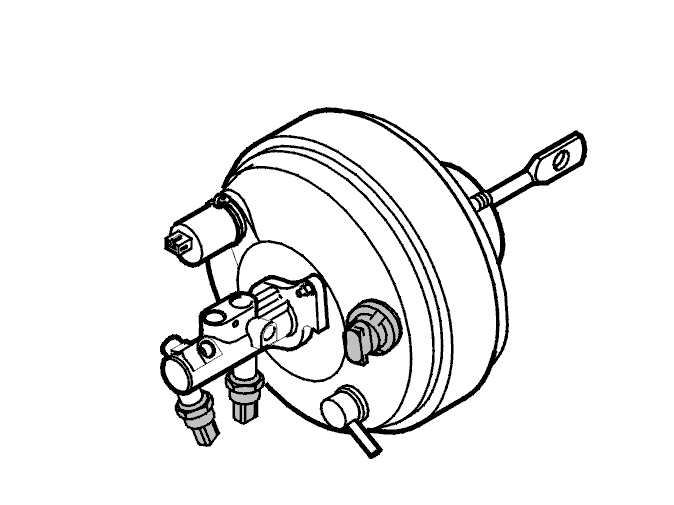

  Fig 2: Identifying Brake Booster

  Courtesy of VOLVO CARS OF NORTH AMERICA.
  Fig 3: Identifying VCT2000 Diagnostic Tool Symbol In VIDA

  Courtesy of VOLVO CARS OF NORTH AMERICA.

Has the status changed?

• YES

  VERIFIED:  Troubleshooting has been completed.

• NO

  Refer to Information
