Installing the badge

Ensure that the vehicle is at least at room temperature (above 20°C).

Wash the area for the badge. Use a mixture of 50% isopropanol and 50% water.

Wipe dry using a clean lint-free cloth or similar.

CAUTION: In order for the badge to secure, the surface must be clean and free of dust and grease.

Remove the backing from the tape.

NOTE: Leave the foil in place.

Guide the badge into the position indicated in the dimensions. Press the whole badge to ensure the tape is in good contact with the base.

Use the following measurements:

Fig 1: Volvo Badge Alignment (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Volvo badge

M1 = 79.6 1 mm

Y0 = center of the hatch

HINT: Measure Y0 using the license plate.

Fig 2: Volvo Emblem Alignment (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

M2 = 10.3 1 mm

Fig 3: S80 Emblem Alignment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Model designation

M3 = 143.4 1 mm

M4 = 37 2 mm

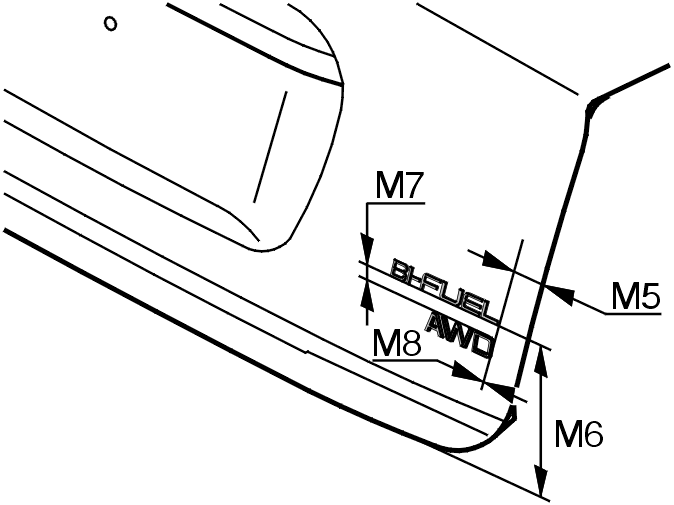

Fig 4: Identifying AWD Badge Alignment

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: The internal parallel (M8) of the badge must be within the tolerances.

Engine designation

M5 = 37 2 mm

M6 = 153 1 mm

M7 = 15 1 mm

M8 = 0 0.5 mm

NOTE: Measurements M5 and M6 must be used for vehicles with only the AWD badge.

Check that the edges of the badge are against the base. There must be no gaps.

Remove the securing foil.

NOTE: To ensure optimal adhesion, do not wash the car for 72 hours. It gradually increases.
