Exterior Trim, Glass, Weatherstrips - Removal, Replacement And Installation
>>
Outer Trim Details, Emblems, Reflective Strips (1999-2003)
>>
Trim Molding, Replacing
>>
Removing the trim molding from the front door
Removing the trim molding from the front door

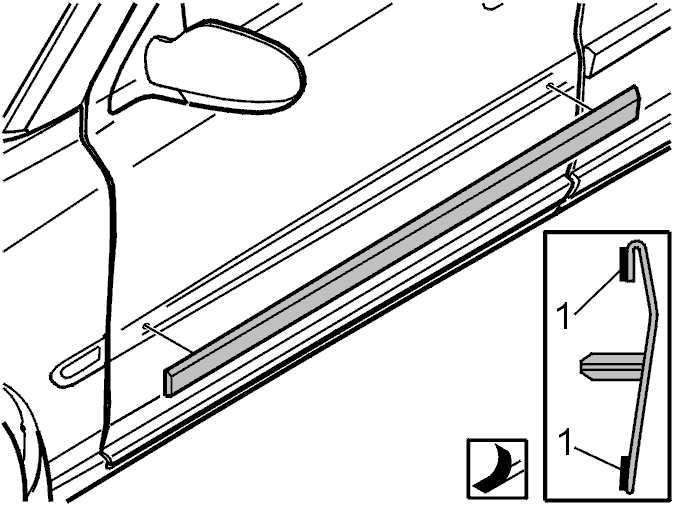

Fig 1: Detaching Covered Clips, Locating Pins And Double-Sided Adhesive Tape By Pulling Straight Out
Courtesy of VOLVO CARS OF NORTH AMERICA.
Detach the two covered clips and locating pins and the double-sided adhesive tape by pulling straight out.
Courtesy of VOLVO CARS OF NORTH AMERICA.
