Removing the trim strip

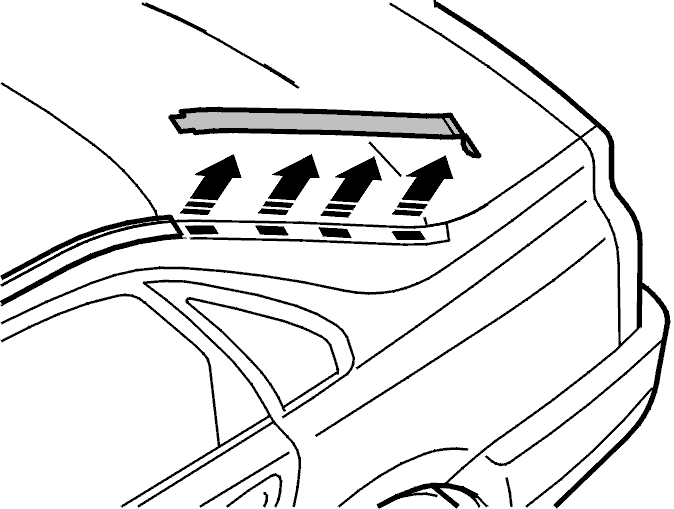

Fig 1: Removing Trim Strip
GLL111492Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the D-post molding strip downwards so that it releases from the roof trim.

Remove:
