Installation
>>
Installing the roof trim
Installing the roof trim

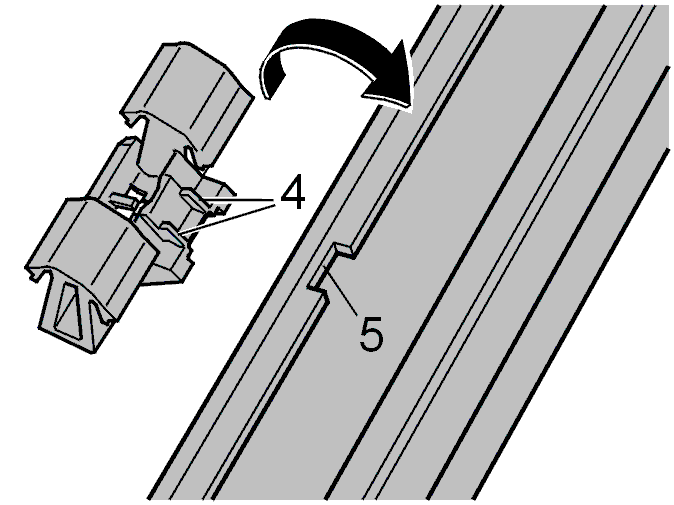

Fig 1: Pressing Lug On Clips In Towards Stamped Mark
Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE:
Replace any damaged clips.
Position the clips (with the hook in contact with the outside)
Press the lug (4) on the clips in towards the stamped mark (5).
Courtesy of VOLVO CARS OF NORTH AMERICA.
