Removing protective cover

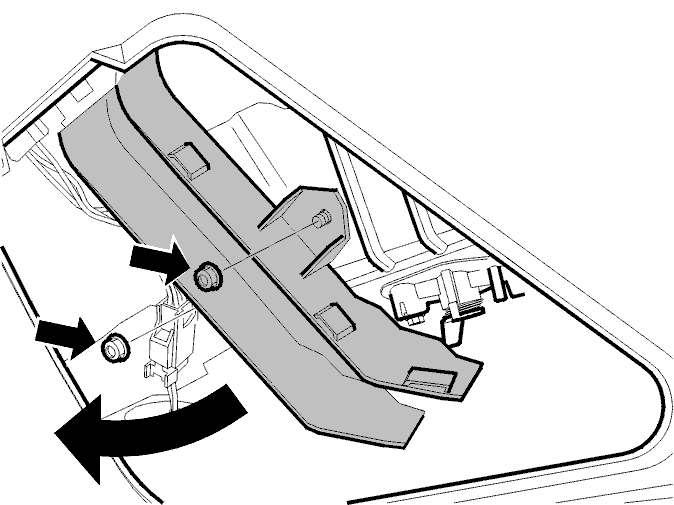

Fig 1: Identifying Nuts And Protective Cover With Link Arm
GLL104893Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the nuts.

Remove the protective cover with the link arm. Place to one side.
