Removing cover

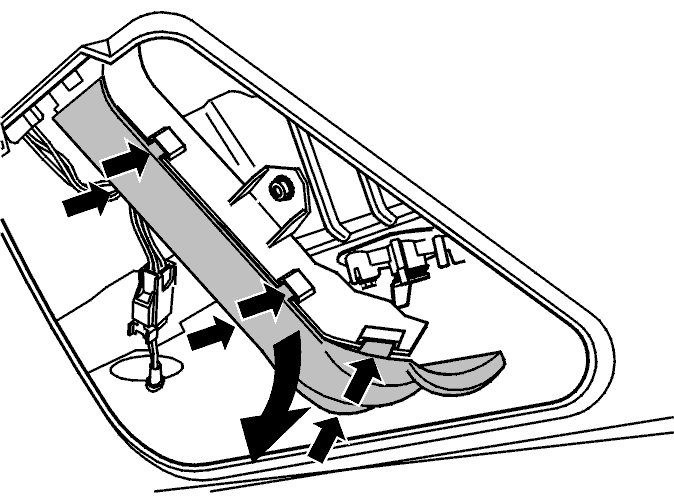

Fig 1: Identifying Mounting Hooks & Cover
GLL104892Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the mounting hooks on the cover using a screwdriver.

Remove the cover from the protective cover.
