Removing sun roof control module

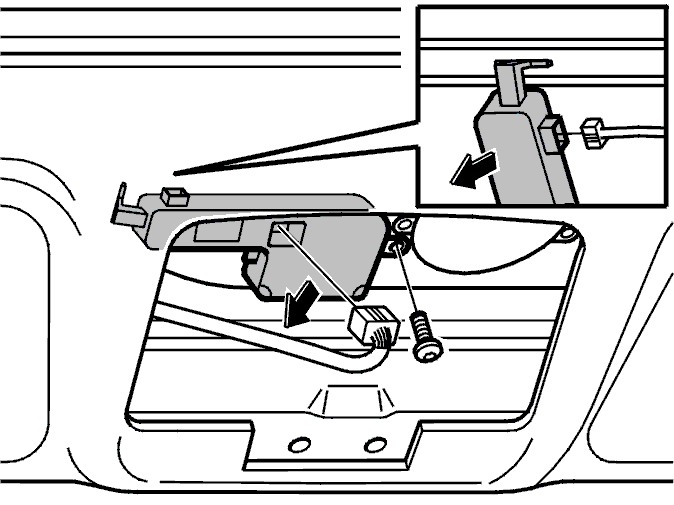

Fig 1: Identifying Upper Electronic Module, Connector And Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the upper electronic module (UEM). See Upper electronic module (UEM)/rearview mirror, replacing
• the first connector
• 1 screw.

Detach the control module and lift it down.

Remove:

• the second connector
• the control module for the sun roof.
