Removing sun roof

Fig 1: Identifying Ignition OFF

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.

Fig 2: Identifying Ignition Key Removed

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the key.

NOTE:

The key must be removed to ensure that the ignition is not switched on by mistake.

NOTE:

After the key has been removed: Wait one minute before starting work.

Remove:

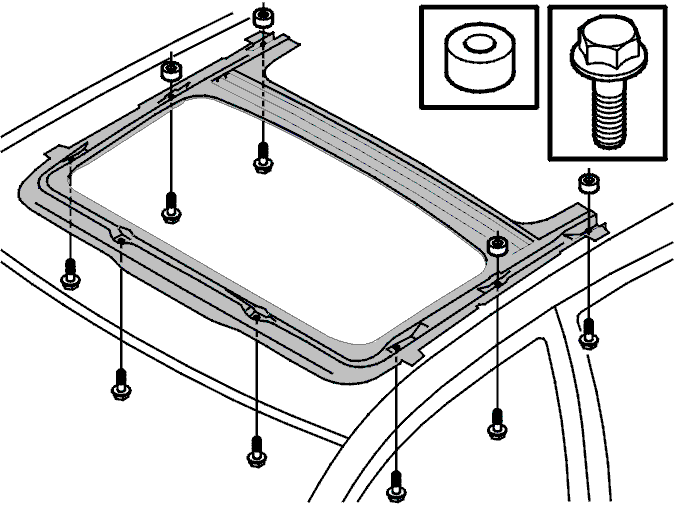

Fig 3: Identifying Screws And Spacers For Gutter Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Note the position of spacers and screws and the various thicknesses and lengths.

Lift the sun roof down and out.
