Installing sun roof

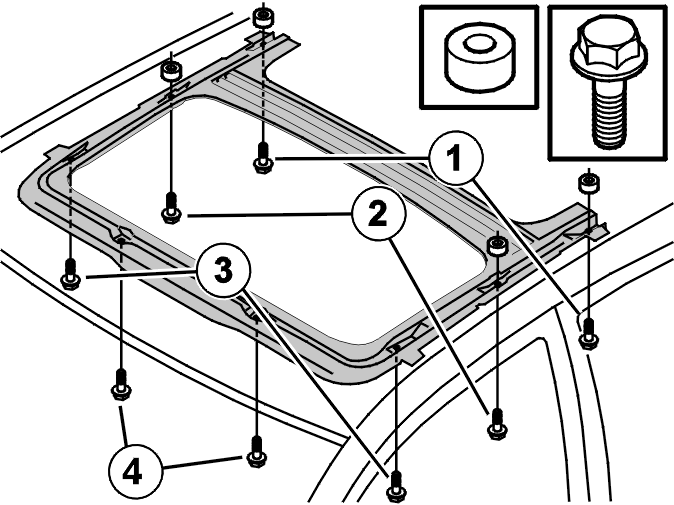

Fig 1: Identifying Screws, Spacers And Nylon Washer For Gutter Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

HINT: Install the screws, the spacers and the nylon washer for the gutter frame before installation.

Install:

• the screws, 4 x M6*25 (position 1 and 2)
• the screws, 4 x M6*14 (position 3 and 4)
• the spacers, 4 x 20*6, 5*10 mm (position 1 and 2).

Lift the sun roof. Place the sun roof in position.

Tighten.

Install:

• the drainage. See Drainage
• the connector.

Adjust. See Sun roof, adjusting .

Install the headlining. See Headlining, replacing .

Check for leakage. See Sun roof, leak test .
