Replacing side weatherstrip

Remove:

• the sun roof assembly according to Sun roof, replacing
• weatherstrip.

Install:

In reverse order.

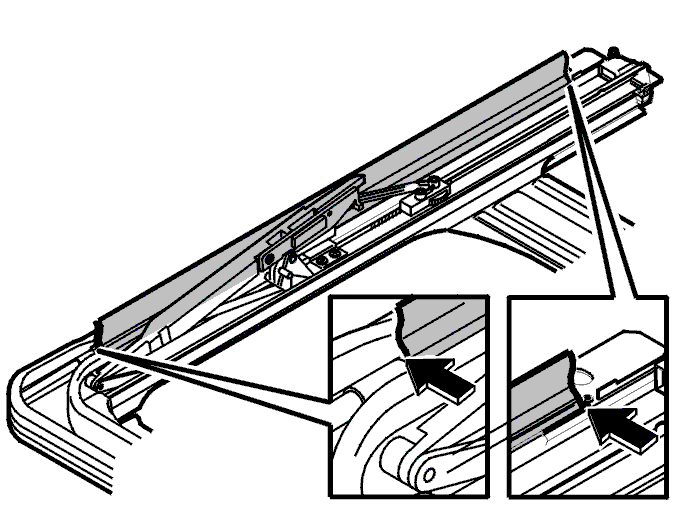

Fig 1: Identifying Side Weatherstrip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Locate as illustrated.

Check for leakage according to Sun roof, leak test .
