Replacing front seal

Remove:

• the sun roof according to Sun roof, replacing
• the trim.

  Pull off roof trim. It may be securely attached.

Install:

In reverse order.

HINT: Clean thoroughly

HINT: Ensure that all adhesive residue and dirt is removed.

Check for leakage according to Sun roof, leak test .

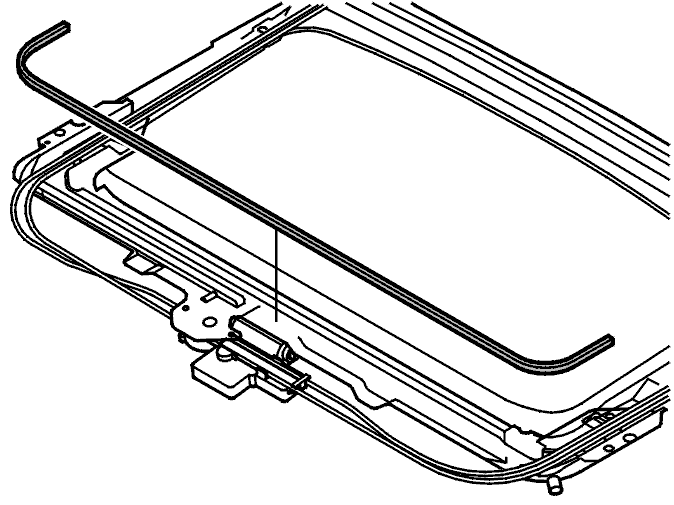

Fig 1: Identifying Weatherstrip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Locate as illustrated.

The weatherstrip must cover the two front cut-outs.
