Replacing slide springs

Remove:

• the inner hatch according to Inner sun roof .

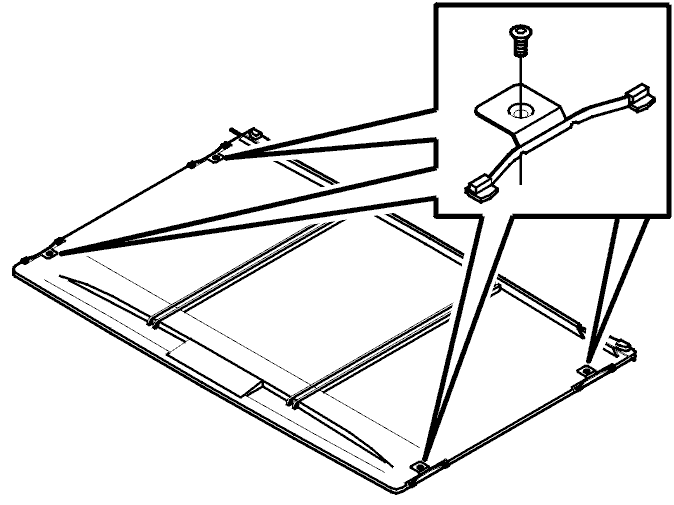

Fig 1: Identifying Removal Of Inner Hatch And Screw/Spring

Courtesy of VOLVO CARS OF NORTH AMERICA.

• a screw / spring.

Replace the spring.

Install:

In reverse order.
