Removing mechanism

Remove:

• the sun roof. See Sun roof, replacing
• the drainage channel. See Gutter sun roof, replacement
• the cable. See Mechanical cable sun roof, replacement .

Fig 1: Identifying Mechanism And Direction Of Movement

Courtesy of VOLVO CARS OF NORTH AMERICA.

Draw out the mechanism so that the drive plate can be angled past the mechanism and downwards.

Fig 2: Identifying Gear Wheel, Rack And Pinion

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slide the mechanism further backwards so that the rack and pinion (1) can be removed when it releases from the gear wheel.

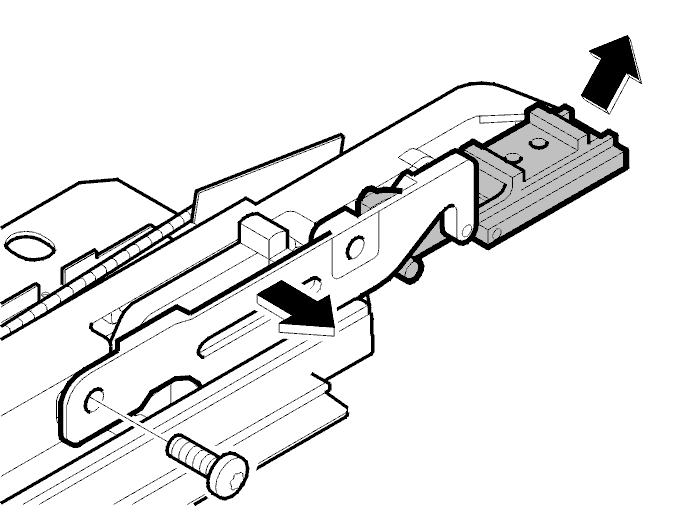

Fig 3: Identifying Slide, Lever And Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the screw
• the slide with lever by angling the bracket (curved plate) inwards.
