Installing mechanical cable

Install:

In reverse order.

NOTE:

Check that the stop is properly secured. Otherwise it may rattle or come loose later.

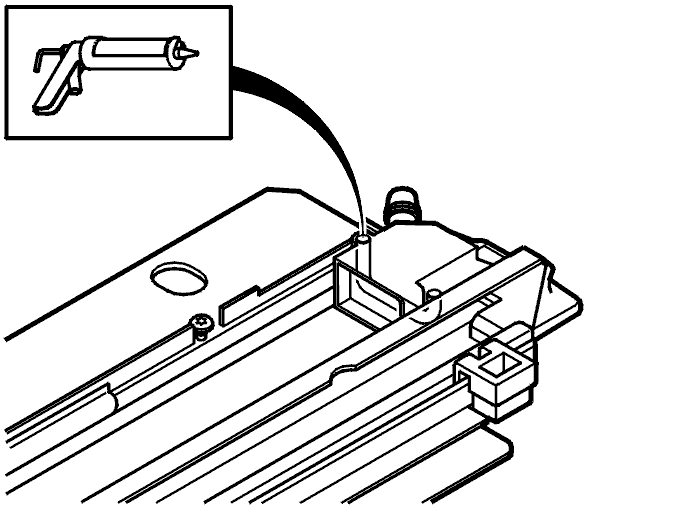

Fig 1: Identifying Drainage Section And Silicone Applicator

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the drainage section using silicone.

CAUTION:

Clean carefully before installing Ensure that the surfaces are clean and free of adhesive / silicone residue and other dirt.

To synchronize the slides: Press/Move the slides forward as far as they will go on both sides before connecting the motor and control module.

Check for leakage. See Sun roof, leak test .

Calibrate the control module. See Sun roof module (SRM), calibrating .
