Placement of lamp holder holes: Preparation

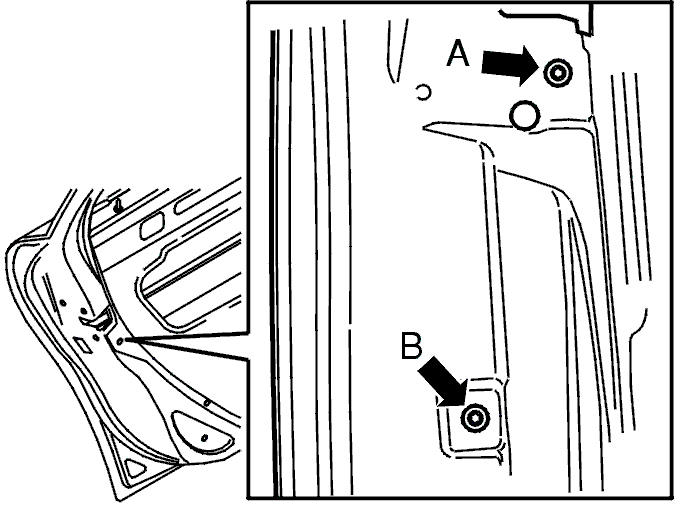

Fig 1: Locating Socket Head Cap Screw And Flange Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Insert a hexagon socket head cap screw (969407 recommended) with flange nut (965483 recommended) into the lower hole of the lock unit (A). Tighten by hand.
• Insert a hexagon socket head cap screw (969407 recommended) with flange nut (965483 recommended) into the hole for the window guide rail (B). Place the screw in the upper part of the hole. Tighten by hand.
