Handle inner, replace

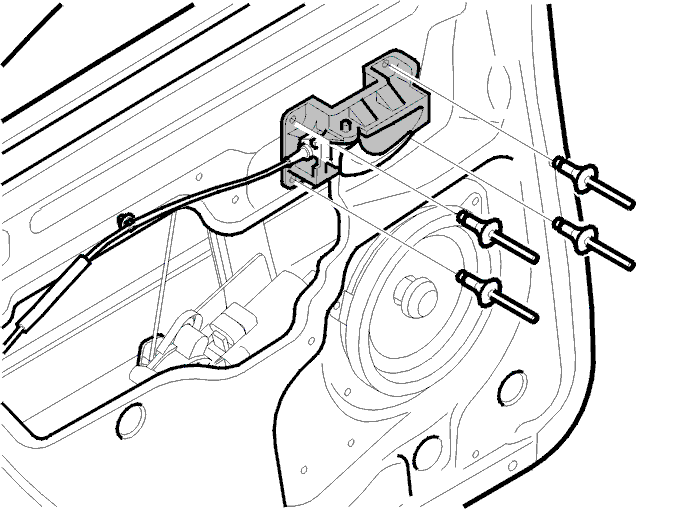

Fig 1: Identifying Inner Rear Side Door Handle And Pop Rivets

Courtesy of VOLVO CARS OF NORTH AMERICA.

Drill out 4 pop rivets.

Unhook the mechanical cable.

NOTE:

When drilling out blind rivets: Vacuum up all filings and remnants in the door so that it will not cause noise later.

Install:

In reverse order.

NOTE:

Always use new blind rivets, P/N 982565 .
