Handle inner, replace

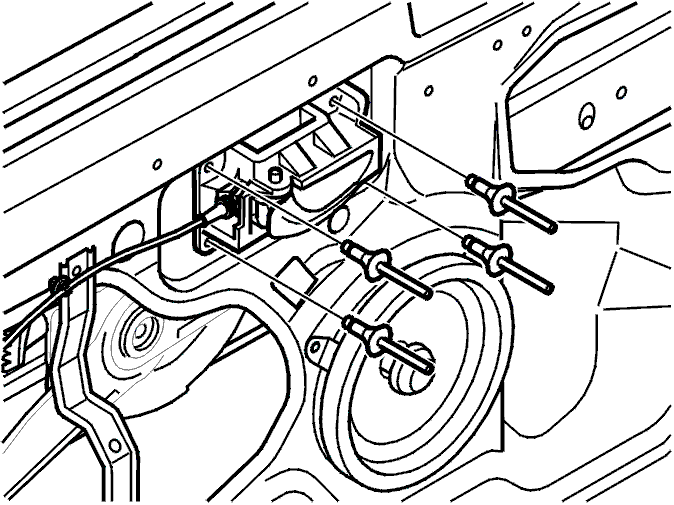

Fig 1: Identifying Inner Front Side Door Rivets

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the door panel. See Panel front side door, replacing
the soundproofing. See Drip guard .
Only the sound proofing needs to be removed.

Drill out the 4 blind rivets.

Unhook the mechanical cable.

Remove the inner door opener.

NOTE:

The heat generated by drilling may melt the plastic.

Install:

In reverse order.

NOTE:

Always use new blind rivets, P/N 982565 .

NOTE:

When drilling out blind rivets: Vacuum up all filings and remnants in the door so that it will not cause noise later.
