Replacing SIPS block
Replacing SIPS block
Remove:
the power window mechanism according to
Window lift mechanism front side door, replacing
.
loudspeakers according to
Loudspeaker front side door, replacement
.

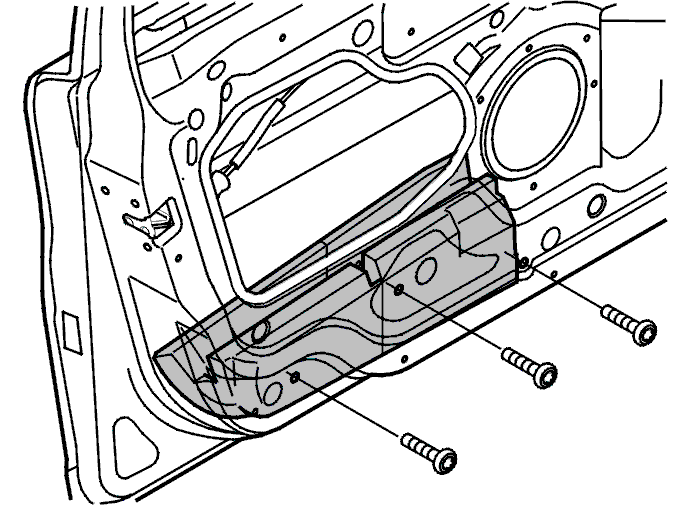

Fig 1: Identifying SIPS Block And Clips
Courtesy of VOLVO CARS OF NORTH AMERICA.
three clips.
wiring.
SIPS block (eased out).
