Making holes

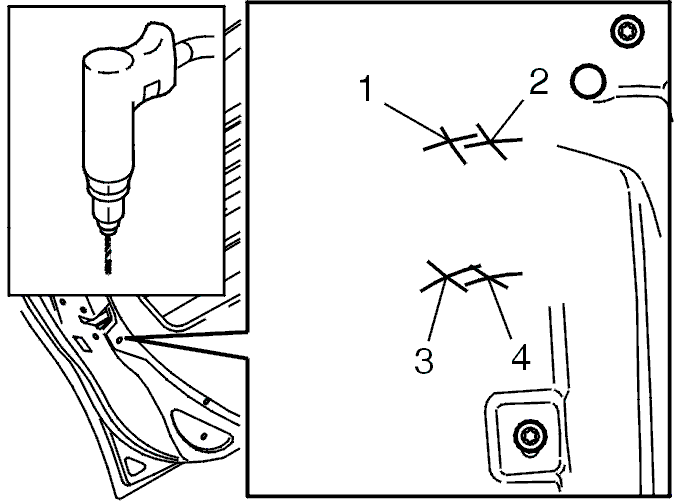

Fig 1: Identifying Marked Areas To Drill

Courtesy of VOLVO CARS OF NORTH AMERICA.

Punch mark 1, 2, 3, 4.
Drill with Ø3.
Drill with Ø6.
Even though the intersection points do not look like they do in reality, the principle does apply (The appearance of the intersection points originates from the rear door).
