Replacing the drip guard

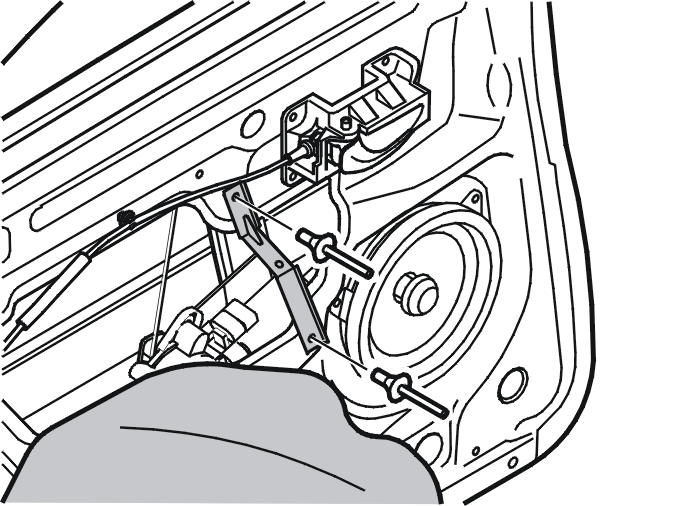

Fig 1: Identifying Drip Guard And Blind Rivets

Courtesy of VOLVO CARS OF NORTH AMERICA.

The drip guard is bonded into place.

Try to pull the drip guard away in one piece.

NOTE:

Replace the drip guard if it is damaged.

The drip guard is secured by two blind rivets.

NOTE:

Drill out one of the rivets then move the drip guard to one side.

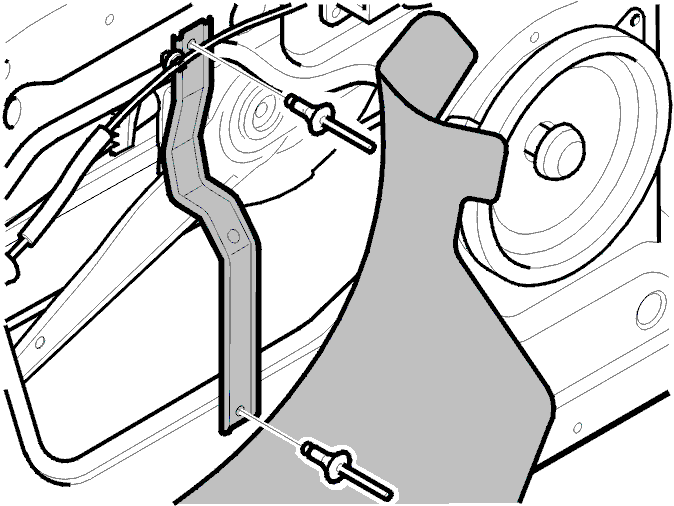

Fig 2: Identifying Blind Rivets For Drip Guard

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

In reverse order.

Rivet the drip guard into place.

NOTE:

Always use new blind rivets, P/N 982565 .
