Removing parcel shelf

S80

Fold down the backrest.

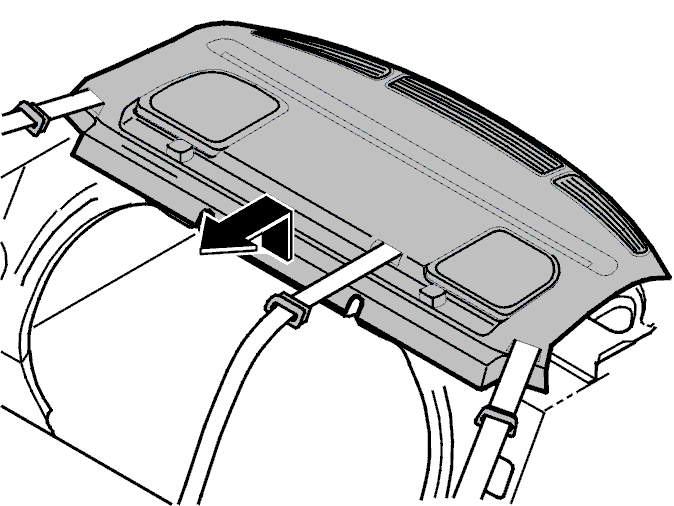

Fig 1: Identifying Parcel Shelf Pulled Up And Straight Forwards

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift at the front edge so that the three clips release.

Carefully pull the parcel shelf up and straight forwards.

Remove the screws for the end mountings.

Unsnap the covers for the belt.

Thread the belt, with cover and upper seat belt guide, through the holes in the parcel shelf.

Lift out the parcel shelf.
