Panel, C-post, replacing

Removing C-post panel

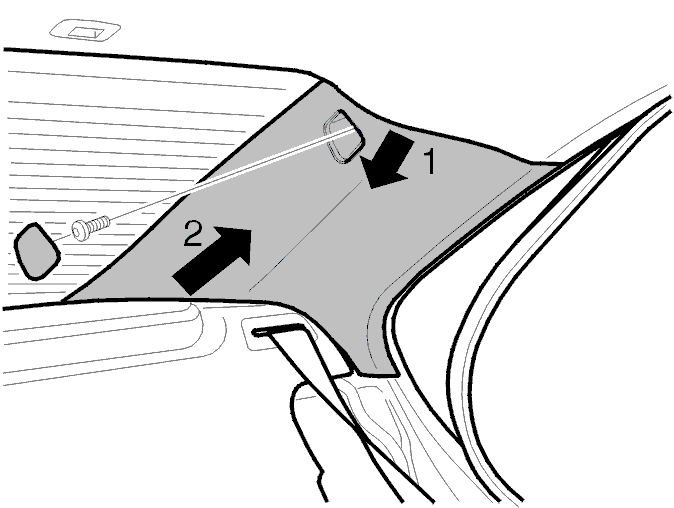

Fig 1: Identifying C-Post Panel Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the weatherstrip.

Remove:

• the cover
• one screw.

Pull the C panel inwards into the car (1).

Angle the panel forward (2).

Lift out the panel.

Installing the C-post panel

Install:

In reverse order.
