Removing parcel shelf sun blind

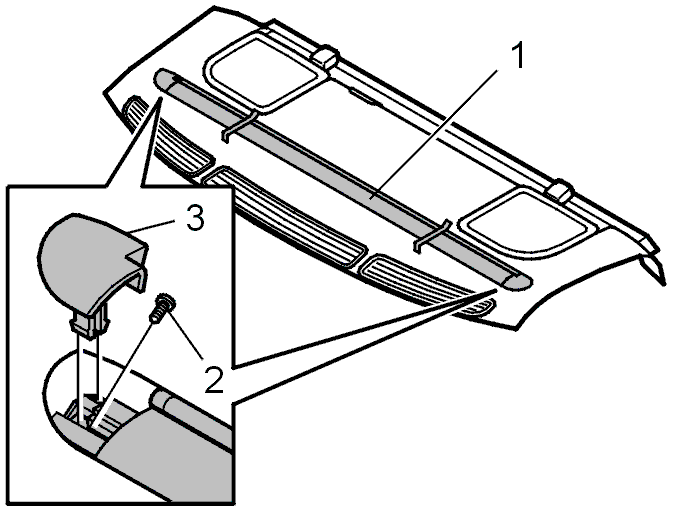

Fig 1: Identifying Blind, Screws And Side Piece Outer Sections
GLL105284Courtesy of VOLVO CARS OF NORTH AMERICA.

Unsnap the outer sections of the side piece (3):

Use weatherstrip tool.

Remove the two screws (2).

Remove the blind (1).
