Replacing C panel

Remove the sealing trim strip.

Remove the 2 steel clips.

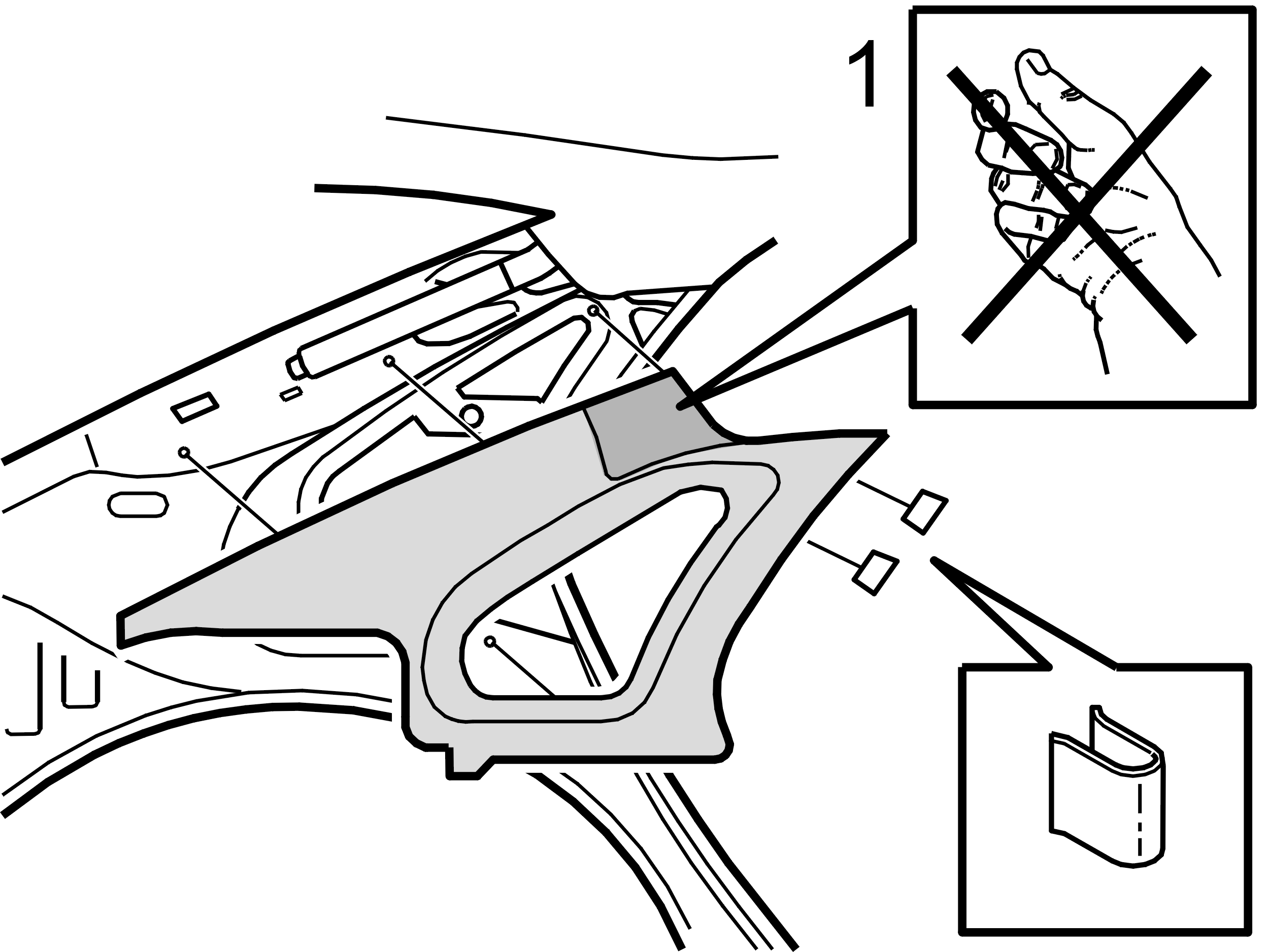

Fig 1: Identifying Precaution: Do Not Touch Area Around Inflatable Curtain Cover With Hands

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the C panel inwards.

Bend the panel forward.

Lift out the panel.

NOTE:

When the C panel is removed do not touch the area around the inflatable curtain cover with hands or tools.

This may deform the cover which cannot be repaired.

Install:

In reverse order.
