Removing roof module

Fig 1: Identifying Rear View Mirror Roof Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the panel:

Pull straight downwards.

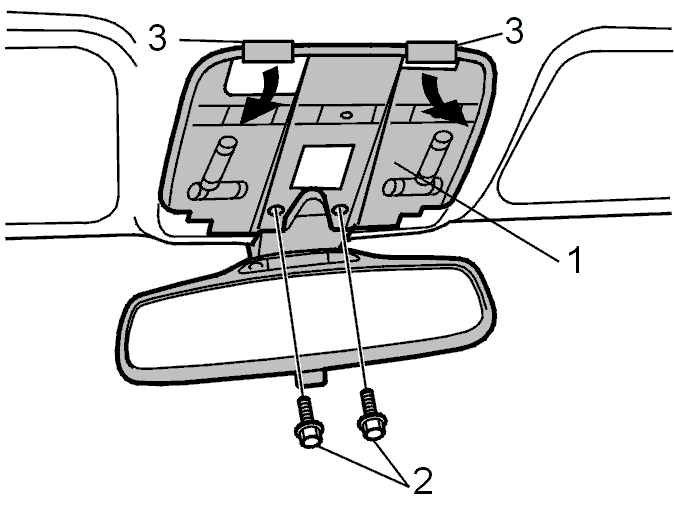

Fig 2: Identifying Roof Module And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove two screws (2).

Two clips at the rear edge (3). Turn them forward.

Pull the module (1) straight down.

Disconnect the (2 or 3) connectors.

Fig 3: Identifying Rear View Mirror Panel Removal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove rear view mirror panel.: Snap up.

Fold the anti-glare knob backward.

Press the connector catches.

Disconnect the connector.
