Fitting ceiling microphone

NOTE:

If new headlining is to be fitted, a hole will have to be made in the roof.

Fig 1: Identifying Roof Microphone Installation Dimensions - With Sunroof (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

With sunroof.

Without profile in place.

A - 17 mm

B - 38 mm

C - 22 mm

D - 12 mm

Fig 2: Identifying Roof Microphone Installation Dimensions - With Sunroof (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

With sunroof.

With profile in place.

A - 8 mm

B - 30 mm

C - 22 mm

D - 12 mm

Fig 3: Identifying Roof Microphone Installation Dimensions - Without Sunroof (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Without sunroof.

Without parts in place.

A - 166 mm

B - 68 mm

C - 22 mm

D - 12 mm

Fig 4: Identifying Roof Microphone Installation Dimensions - Without Sunroof (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Without sunroof.

With parts in place.

A - 142 mm

B - 61 mm

C - 22 mm

D - 12 mm

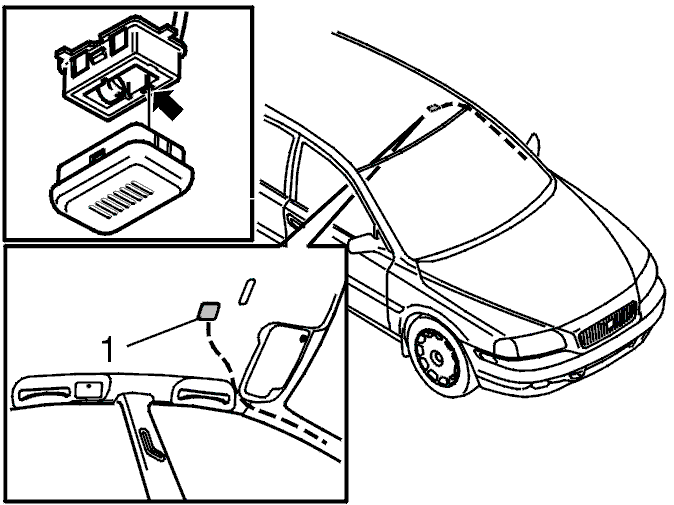

Fig 5: Identifying Roof Microphone Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

The cable harness should be glued or taped to the headlining.

Fit:
