Installing new height adjuster on old rails

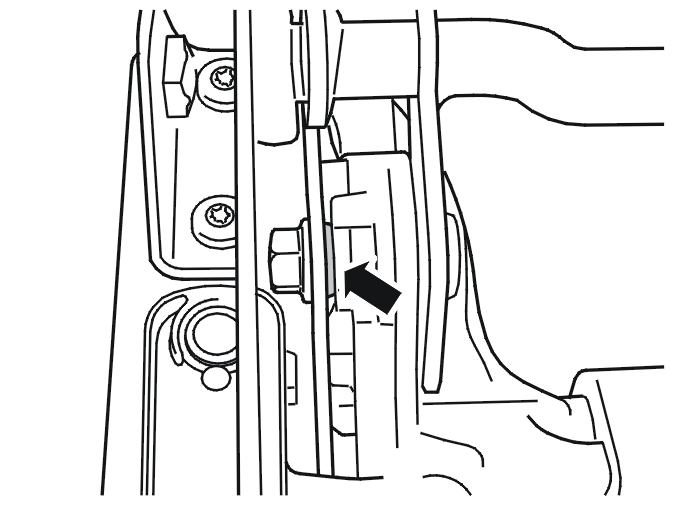

Fig 1: Locating Washer 955895
GLL148290Courtesy of VOLVO CARS OF NORTH AMERICA.

Fit the washer, 1 pc., with part number 955895  between the slide rail and motor on the screws.

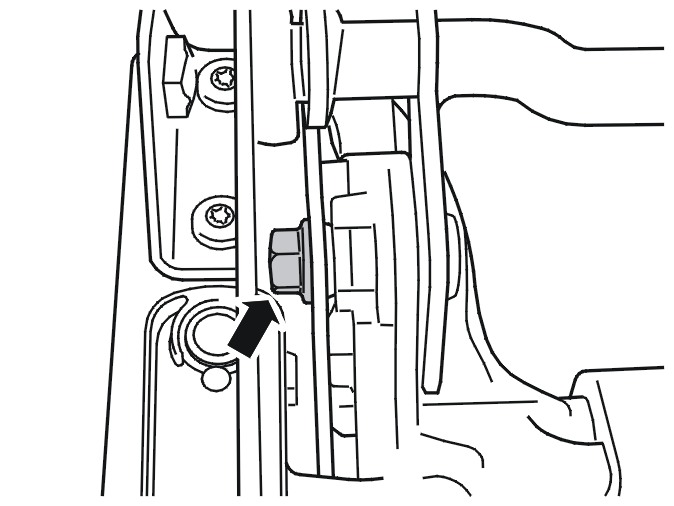

Fig 2: Locating Nut 971095
GLL148291Courtesy of VOLVO CARS OF NORTH AMERICA.

Fit the nuts with part number 971095  and tighten with 20 Nm.
