Side panel: Removal

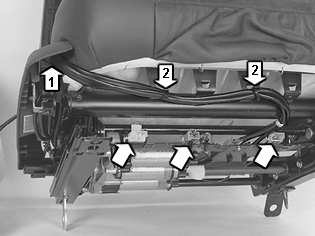

Fig 1: Identifying Control Panel Connectors And Tie Straps
GLL110061Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove tie strap (1).

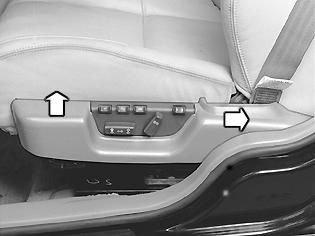

Fig 2: Identifying Front Edge Of Side Panel Lifted And Pulled Backwards
GLL110071Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift the front edge of the side panel.

Pull the side panel backwards.
