Control panel: Removal

Remove:

• side panel according to Side panel .

Fig 1: Identifying Control Panel Connectors And Tie Straps

Courtesy of VOLVO CARS OF NORTH AMERICA.

• three connectors.
• two tie straps (2).

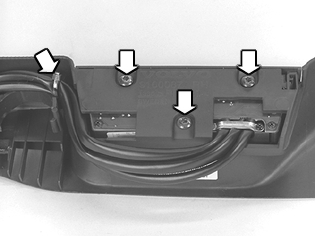

Fig 2: Identifying Control Panel Tie Straps And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• a tie strap.
• three screws.

Lift control panel straight up.

Remove control panel.
