Destruction of inflatable curtain (IC)

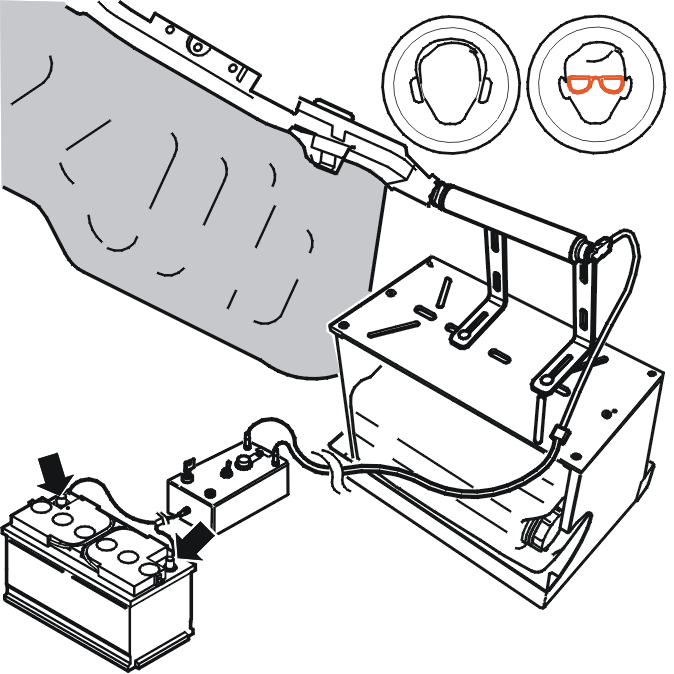

Fig 1: Destruction Of Inflatable Curtain

Courtesy of VOLVO CARS OF NORTH AMERICA.

Insert the key and turn it to position 1.

Destroy the gas generator by connecting the rocker switch and push-button.

Turn the key to position 0.

Remove the key from the discharge box and store so that it is inaccessible for unauthorized use.

If the adapter cable is still connected, detach it from the gas generator immediately after destruction. Use gloves so as not to burn your hands.

Remove the destroyed gas generator from the fixture.
