Installing The Decal For The Disconnected Passenger Airbag (SRS)

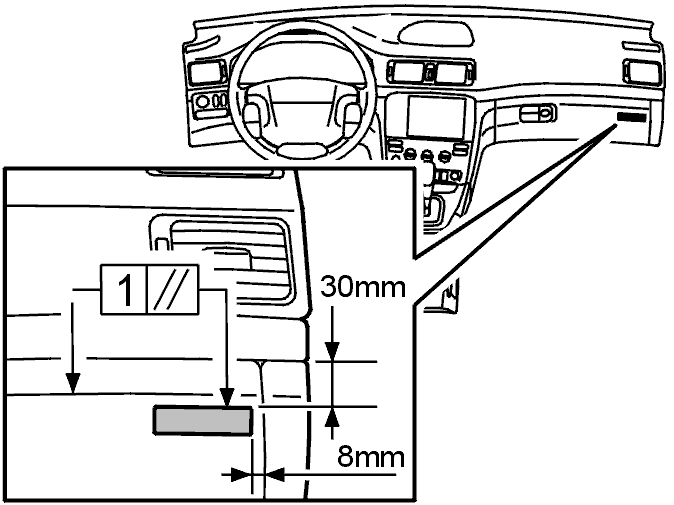

Fig 1: View Of Disconnected Passenger Airbag Decal
GLL101563Courtesy of VOLVO CARS OF NORTH AMERICA.

Install a decal with the relevant language on the glove compartment cover. Install the decal so that it is parallel to the edge of the cover.

Do not deviate by more than 1 mm See the "//" symbol in the illustration.

NOTE:

The decals on the sun visor and the dashboard end facing the inside of the front door (passenger side) may have to be masked off to satisfy local legislation. Please check the information issued by your National sales company/distributor/importer for details.
