Disconnecting The Passenger Side Airbag (SRS)

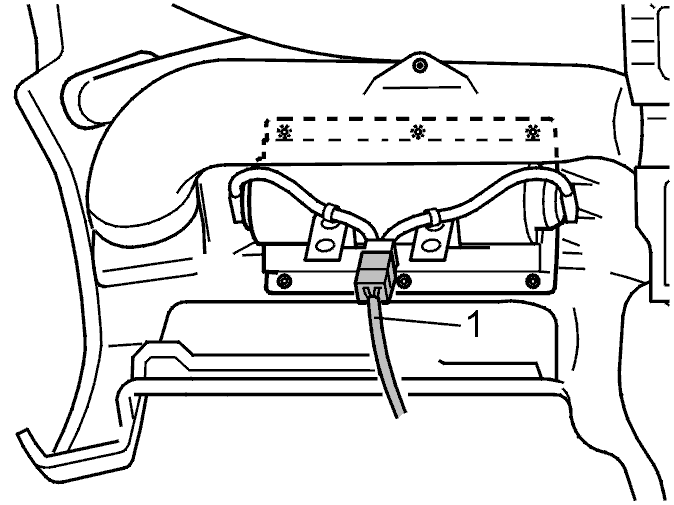

Fig 1: Identifying Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the connector (1).

Fig 2: Disconnected 4-Pin Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the adapter on the disconnected 4-pin connector. Check that the catch on the connector is locked.

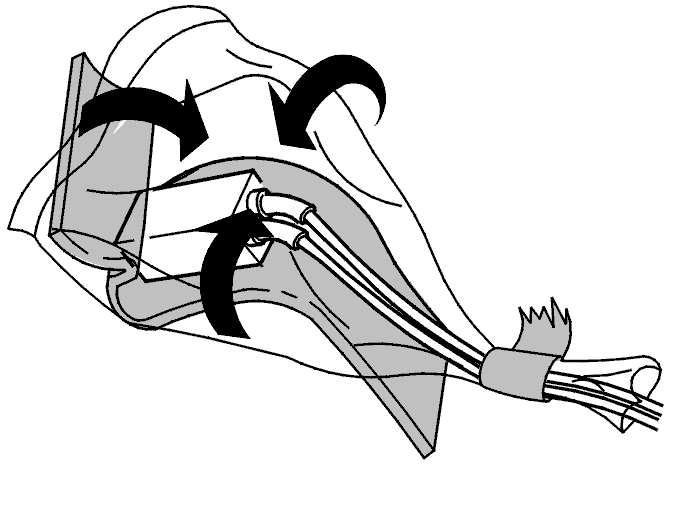

Fig 3: View Of Plastic Bag Over The Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place the plastic bag supplied over the connector. Close the bag around the connector. Seal the bag using tape.

Apply foam rubber protection to the outside of the plastic bag. The foam rubber protection acts as a shock absorber.
