Signal too high: Verification

HINT: After the repair it is necessary to check that the fault has been rectified.

Fig 1: Identifying Ignition OFF

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Connector(s) Reinstallation

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition off.
• Connect the connectors, install the components, etc.

  Simulate the door closing by pressing in the striker plate in the lock.

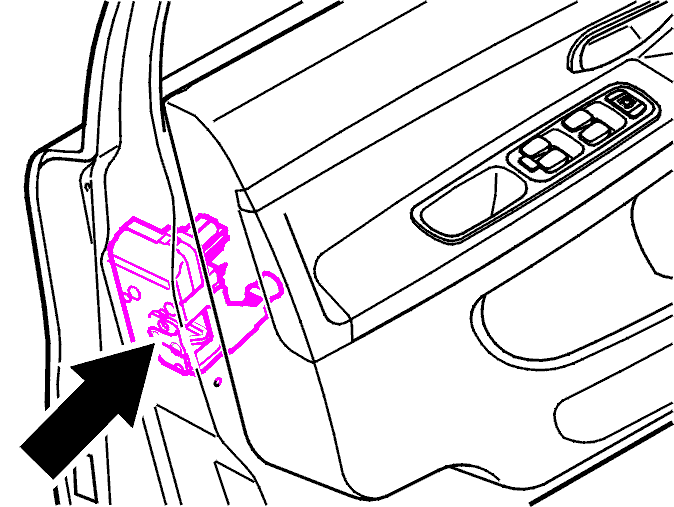

  Fig 3: Identifying Door Lock Striker Plate

  Courtesy of VOLVO CARS OF NORTH AMERICA.

Does lamp go off?

• YES

  VERIFIED:  Troubleshooting has been completed.

• NO

  Refer to Fault-tracing information
