Fault-tracing information

If the headsets do not function the fault could be due to:

• The headsets (Infra-red receiver in the headsets)
• Damaged IR-transmitter/parcel shelf.
• Cable harness between control module rear sound separation and IR-transmitter/parcel shelf.

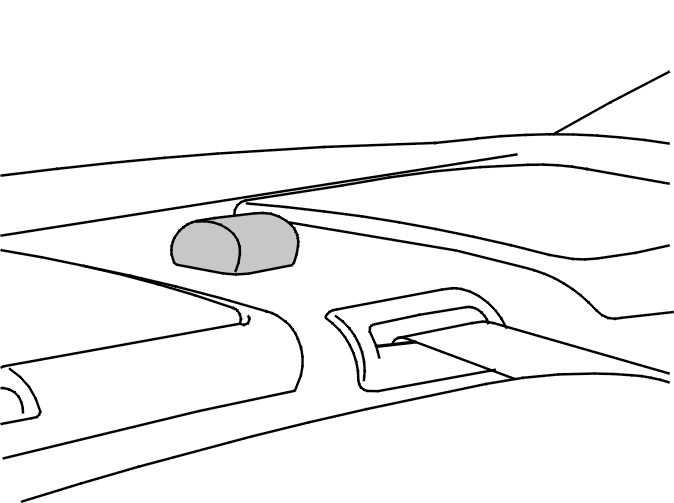

Fig 1: Identifying IR-Transmitter / Parcel

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to Checking headsets
