Fault-tracing information

If the auxiliary jack (AUX) does not function the fault could be due to:

• Wiring or contact resistance in the terminals
• Defective Rear Seat Entertainment Module (RSE)
• The AUX-panel
• Externally connected component.

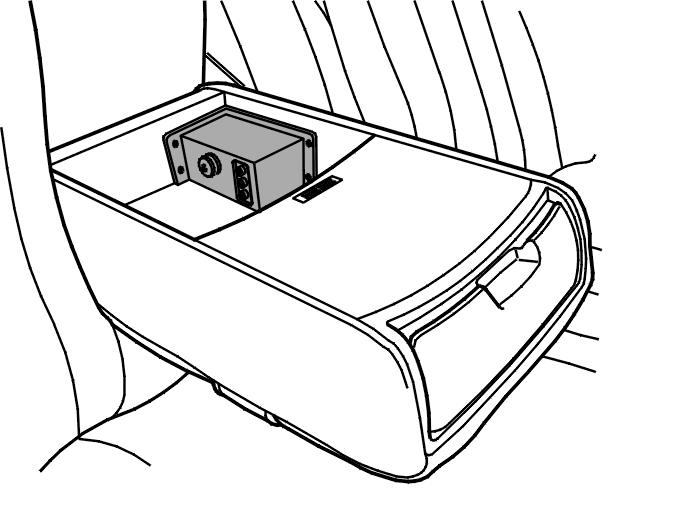

Fig 1: Identifying Rear Seat Entertainment Module (RSE) (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Rear Seat Entertainment Module (RSE) (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to Checking auxiliary jack (AUX)
